HEAT EXCHANGER

AUTOMATED HEATING, STORAGE AND TRANSFER OF BIOPULP

Modular and scalable to any sized application, the Fitec Heat Exchanger can be integrated as a pre-heating or circular heating system for the anaerobic digester to optimize energy balance and process flow.

Click the arrows to the right and left of the image to view the gallery.


01 Pumps
02 Heat Exchangers
03 Holding Tanks
Heat Exchanger Systems

Heat Exchanger Systems

01. Pumps – Custom-engineered to work in biogas facilities, good for high pressure and long distances.

01. Pumps – Custom-engineered to work in biogas facilities, good for high pressure and long distances.

02. Heat Exchangers – Hot water between the 4” inner substrate piping and 5” outer jacket rapidly and efficiently heats the Biopulp to a temperature of 70°C.

02. Heat Exchangers – Hot water between the 4” inner substrate piping and 5” outer jacket rapidly and efficiently heats the Biopulp to a temperature of >70°C.

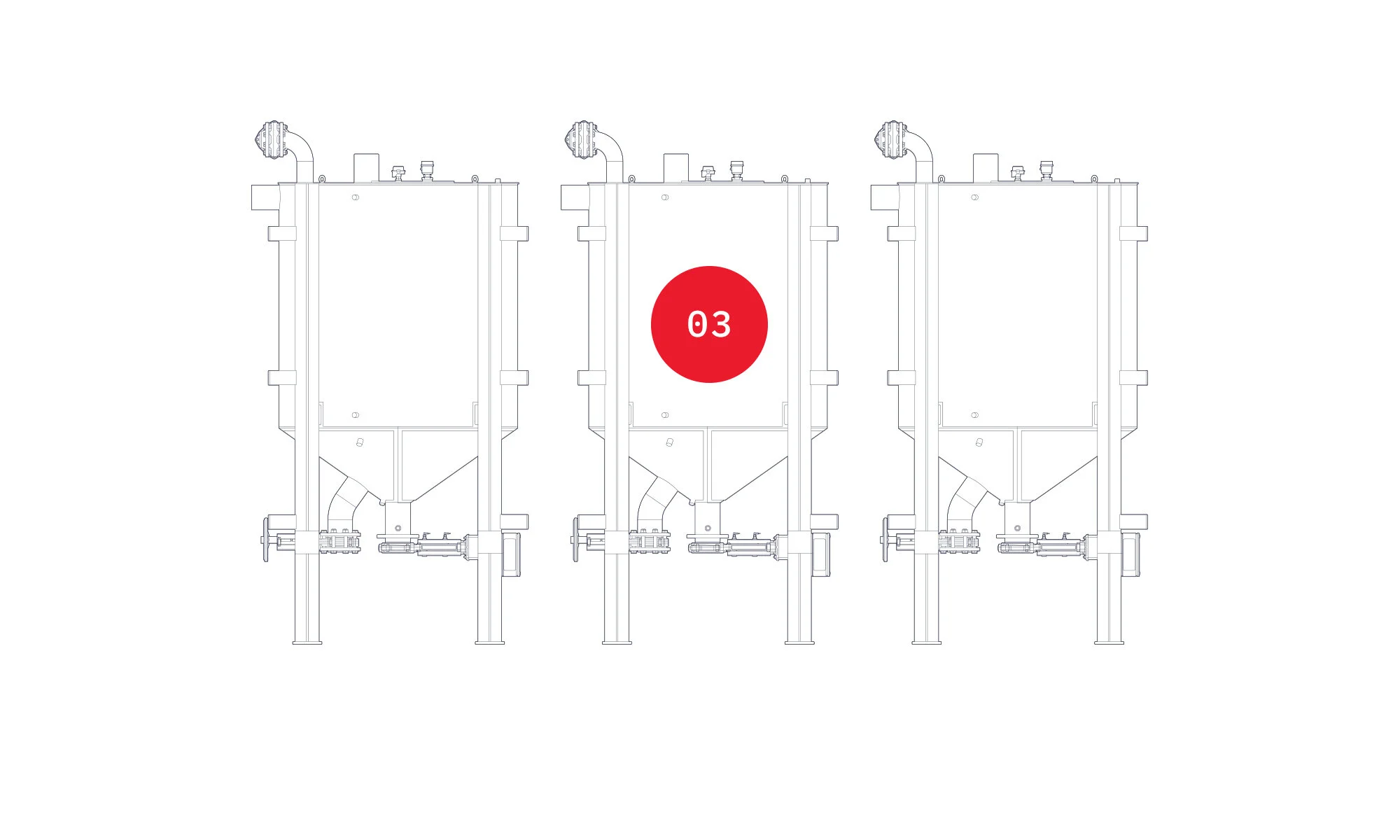

03. Holding Tanks – Dimpled steel hot water jackets ensures the waste has been held to temperature for at least 1 hour to meet pasteurization regulation standards.

03. Holding Tanks – Dimpled steel hot water jackets ensures the waste has been held to temperature for at least 1 hour to meet pasteurization regulation standards.

» Designed to handle highly abrasive materials with high solids contents at high temperatures

» System heating parameters can be customized to meet system needs as well as local regulations.




TECHNICAL SPECIFICATIONS
» No mechanical movement in the system means no fouling of equipment and low maintenance costs
» Each heat exchanger component is modeled and sized based on a per project basis
» Back-cooling loop regulates the temperature of the biopulp before entering the digester tank to ensure optimal digestion

25% Total Solids

No Dilution Required

Energy-efficient

High Heat Transfer Rate Completely Eliminates the Need for In-Vessel Heating
